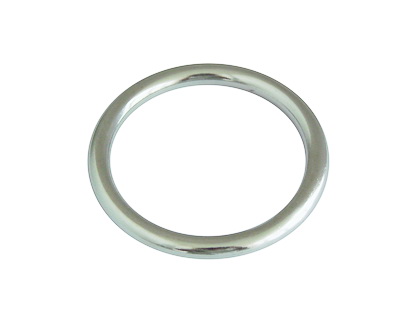

圆环-SF317
| SIZE(mm) | ΦD(mm) | L(mm) | B.L.(kgs) |
| 3x10 | 3 | 10 | 650 |
| 3x15 | 3 | 15 | 650 |
| 3x20 | 3 | 20 | 650 |
| 3x25 | 3 | 25 | 650 |
| 3x30 | 3 | 30 | 650 |
| 3x35 | 3 | 35 | 650 |
| 3x40 | 3 | 40 | 650 |
| 4x20 | 4 | 20 | 1000 |
| 4x25 | 4 | 25 | 1000 |
| 4x30 | 4 | 30 | 1000 |
| 4x35 | 4 | 35 | 1000 |
| 4x40 | 4 | 40 | 1000 |
| 5x20 | 5 | 20 | 2000 |
| 5x25 | 5 | 25 | 2000 |
| 5x30 | 5 | 30 | 2000 |
| 5x35 | 5 | 35 | 2000 |
| 5x40 | 5 | 40 | 2000 |
| 5x45 | 5 | 45 | 2000 |
| 5x50 | 5 | 50 | 2000 |
| 5x60 | 5 | 60 | 2000 |
| 5x65 | 5 | 65 | 2000 |
| 6x25 | 6 | 25 | 2700 |
| 6x30 | 6 | 30 | 2700 |
| 6x35 | 6 | 35 | 2700 |
| 6x40 | 6 | 40 | 2700 |
| 6x45 | 6 | 45 | 2700 |
| 6x50 | 6 | 50 | 2700 |
| 6x55 | 6 | 55 | 2700 |
| 6x60 | 6 | 60 | 2700 |
| 6x80 | 6 | 80 | 2700 |
| 6x90 | 6 | 90 | 2700 |
| 7x40 | 7 | 40 | 3200 |
| 7x45 | 7 | 45 | 3200 |
| 7x50 | 7 | 50 | 3200 |
| 7x55 | 7 | 55 | 3200 |
| 7x60 | 7 | 60 | 3200 |
| 7x65 | 7 | 65 | 3200 |
| 8x30 | 8 | 30 | 5000 |
| 8x35 | 8 | 35 | 5000 |
| 8x40 | 8 | 40 | 5000 |
| 8x45 | 8 | 45 | 5000 |
| 8x50 | 8 | 50 | 5000 |
| 8x55 | 8 | 55 | 5000 |
| 8x60 | 8 | 60 | 5000 |
| 8x65 | 8 | 65 | 5000 |
| 8x70 | 8 | 70 | 5000 |
| 8x75 | 8 | 75 | 5000 |
| 8x80 | 8 | 80 | 5000 |
| 8x90 | 8 | 90 | 5000 |
| 8x100 | 8 | 100 | 5000 |
| 9x30 | 9 | 30 | 6200 |
| 9x50 | 9 | 50 | 6200 |
| 9x60 | 9 | 60 | 6200 |
| 9x65 | 9 | 65 | 6200 |
| 9x70 | 9 | 70 | 6200 |
| 9x80 | 9 | 80 | 6200 |
| 9x90 | 9 | 90 | 6200 |
| 10x40 | 10 | 40 | 8500 |
| 10x50 | 10 | 50 | 8500 |
| 10x55 | 10 | 55 | 8500 |
| 10x60 | 10 | 60 | 8500 |
| 10x65 | 10 | 65 | 8500 |
| 10x70 | 10 | 70 | 8500 |
| 10x75 | 10 | 75 | 8500 |
| 10x80 | 10 | 80 | 8500 |
| 10x90 | 10 | 90 | 8500 |
| 10x100 | 10 | 100 | 8500 |
| 10x120 | 10 | 120 | 8500 |
| 10x140 | 10 | 140 | 8500 |
| 12x60 | 12 | 60 | 10000 |
| 12x65 | 12 | 65 | 10000 |
| 12x70 | 12 | 70 | 10000 |
| 12x75 | 12 | 75 | 10000 |
| 12x80 | 12 | 80 | 10000 |
| 12x90 | 12 | 90 | 10000 |
| 12x100 | 12 | 100 | 10000 |
| 12x110 | 12 | 110 | 10000 |
| 12x120 | 12 | 120 | 10000 |
| 12x140 | 12 | 140 | 10000 |
| 13x55 | 13 | 55 | 11500 |
| 13x60 | 13 | 60 | 11500 |
| 13x65 | 13 | 65 | 11500 |
| 13x70 | 13 | 70 | 11500 |
| 13x80 | 13 | 80 | 11500 |
| 13x90 | 13 | 90 | 11500 |
| 13x100 | 13 | 100 | 11500 |
| 13x120 | 13 | 120 | 11500 |
| 13x130 | 13 | 130 | 11500 |
| 13x140 | 13 | 140 | 11500 |
| 13x150 | 13 | 150 | 11500 |
| 13x160 | 13 | 160 | 11500 |
