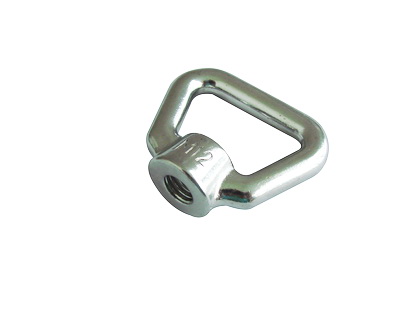

Rectangular eye nut, S80704
| SIZE(mm) | C(mm) | ΦD(mm) | L(mm) | M(thread) | B.L.(kgs) |
| 8 | 32 | 6.5 | 36.5 | M8 | 2200 |
| 10 | 42 | 8.0 | 45.0 | M10 | 3600 |
| 12 | 48 | 10.0 | 52.0 | M12 | 4300 |
| 16 | 50 | 12.5 | 59.0 | M16 |
| SIZE(mm) | C(mm) | ΦD(mm) | L(mm) | M(thread) | B.L.(kgs) |
| 8 | 32 | 6.5 | 36.5 | M8 | 2200 |
| 10 | 42 | 8.0 | 45.0 | M10 | 3600 |
| 12 | 48 | 10.0 | 52.0 | M12 | 4300 |
| 16 | 50 | 12.5 | 59.0 | M16 |
