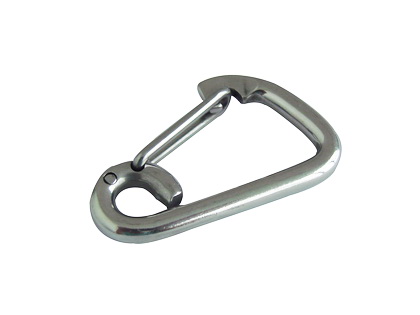

Spring snap (angle hook and eye end), SF2430
| SIZE(mm) | B(mm) | ΦD(mm) | L(mm) | O(mm) | B.L.(kgs) |
| 6 | 10 | 6 | 61 | 12.5 | 750 |
| 8 | 12 | 8 | 81 | 17.0 | 1750 |
| 10 | 15 | 10 | 102 | 23.5 | 2250 |
| 12 | 19 | 12 | 122 | 28.0 | 3650 |
| SIZE(mm) | B(mm) | ΦD(mm) | L(mm) | O(mm) | B.L.(kgs) |
| 6 | 10 | 6 | 61 | 12.5 | 750 |
| 8 | 12 | 8 | 81 | 17.0 | 1750 |
| 10 | 15 | 10 | 102 | 23.5 | 2250 |
| 12 | 19 | 12 | 122 | 28.0 | 3650 |
