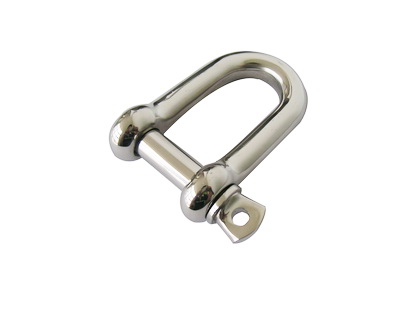

D shackle (collar pin) , S360CP
|
SIZE(mm)
|
φA(mm)
|
B(mm)
|
L(mm)
|
B.L.(kgs)
|
| 3 | 3 | 6 | 12 | 400 |
| 4 | 4 | 8 | 16 | 550 |
| 5 | 5 | 10 | 20 | 1000 |
| 6 | 6 | 12 | 24 | 1700 |
| 7 | 7 | 14 | 28 | 2000 |
| 8 | 8 | 16 | 32 | 2800 |
| 9 | 9 | 18 | 36 | 3500 |
| 10 | 10 | 20 | 40 | 4500 |
| 12 | 12 | 24 | 48 | 6000 |
| 13 | 13 | 26 | 52 | 6500 |
| 14 | 14 | 28 | 56 | 7000 |
| 16 | 16 | 32 | 64 | 10000 |
| 19 | 19 | 38 | 76 | 15000 |
| 22 | 22 | 44 | 88 | 19000 |
| 25 | 25 | 50 | 100 | 23000 |
| 28 | 28 | 56 | 112 | 26000 |
| 32 | 32 | 64 | 128 | 38000 |
